QuWatcher Class Reference

Manage readings of various type of objects in a different thread. More...

#include <quwatcher.h>

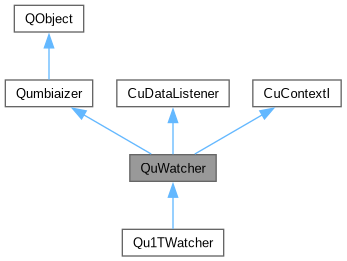

Inheritance diagram for QuWatcher:

Public Slots
void	setSource (const QString &s)
	Connect the reader to the specified source. More...
void	unsetSource ()
	Stop the watcher. More...

Public Member Functions
	QuWatcher (QObject *parent, Cumbia *cumbia, const CuControlsReaderFactoryI &r_fac)
	Constructs a reader with parent parent. More...
	QuWatcher (QObject *parent, CumbiaPool *cumbia_pool, const CuControlsFactoryPool &fpool)
virtual	~QuWatcher ()
CuContext *	getContext () const
	Return a reference to the CuContext in use. More...
void	onUpdate (const CuData &data)
	QuWatcher implementation of the onUpdate method. More...
QString	source () const
	returns the source of the watcher More...
Public Member Functions inherited from Qumbiaizer
	Qumbiaizer (QObject *parent)
virtual	~Qumbiaizer ()
bool	error () const
QString	message () const
virtual void	attach (QObject *object, const char *method, const char *setPointSlot=NULL, Qt::ConnectionType connType=Qt::AutoConnection)
	associate a QObject and one or two methods to be invoked by the class on new data arrival (QTWatcher) or on target execution (QTWriter). More...
void	attach (short *s)
void	attach (double *d)
void	attach (int *i)
void	attach (unsigned int *u)
void	attach (QString *qs)
void	attach (bool *b)
void	attach (QStringList *sl)
void	attach (QVector< double > *v)
void	attach (QVector< int > *vi)
void	attach (QVector< bool > *vb)
Type	type () const
QString	slot () const
QString	methodName () const
	returns the method name, without the full signature. More...
QString	setPointSlot () const
QString	setPointMethodName () const
void *	data ()
Qt::ConnectionType	connectionType () const
void	setAutoConfSlot (AutoConfType act, const char *slot)
	when minimum and maximum values are available, these slots are invoked. More...
bool	inTypeOfMethod (const QString &method, QObject *obj, char *in_type)
	writes into the in_type parameter the type of the input argument of the given method of the object obj. More...
int	extractCode (QString &method)
	extracts the signal/slot code at the beginning of the method name More...
void	removeRefreshFilter (QuValueFilter *filter)
	removes filter from the object. More...
void	installRefreshFilter (QuValueFilter *filter)
	install the QTRefreshFilter filter into the QTangoizer. More...
QuValueFilter *	refreshFilter () const
	returns the currently installed refresh filter. More...
void	setSingleShot (bool singleShot)
	Call this one before setSource to ensure that only one read is performed. More...
void	setAutoDestroy (bool autoDestroy)
	set single shot and then destroy the object right after the execution More...
bool	autoDestroy () const
	returns true if the object auto destroys itself after first execution. More...
bool	singleShot () const
	returns the singleShot property. More...
void	setToolTipsDisabled (bool disable)
bool	toolTipsDisabled () const
const char *	type_str (Type t) const
Public Member Functions inherited from CuContextI
virtual	~CuContextI ()
virtual CuContext *	getContext () const =0
	Return a reference to the CuContext in use. More...

Properties
QString	source

Additional Inherited Members
Public Types inherited from Qumbiaizer
enum	Type {   Invalid = -1 , Void , Int , Double ,   UInt , Short , String , Bool ,   BoolVector , DoubleVector , StringVector , IntVector }
enum	AutoConfType {   Min , Max , MinWarn , MaxWarn ,   MinErr , MaxErr , StdUnit , Unit ,   DisplayUnit , Description , Label }
	Supported auto configuration parameters with which you can invoke slots on the attached refreshee. More...
Signals inherited from Qumbiaizer
void	configured (const CuData &)
	auto configuration signal. More...
void	connectionOk (bool ok)
	emitted when the type of data received within onUpdate is set to property More...
void	connectionErrorMessage (const QString &msg)
	a signal that contains the error message related to setSource - or setTargets - failures. More...
void	refreshMessage (const QString &message)
	Emitted by the refresh method. The message is taken from the TVariant. More...
void	readOk (bool success)
	this signal is emitted by the QuWatcher::onUpdate method and the success parameter indicates whether the reading is successful or not. More...
void	newData (short s)
	newData for short data types More...
void	newData (int i)
	newData for int data types More...
void	newData (double d)
	newData for double data types More...
void	newData (const QString &s)
	newData for string data types More...
void	newData ()
void	newData (unsigned int ui)
	newData for unsigned int data types More...
void	newData (unsigned short us)
	newData for unsigned short data types More...
void	newData (bool b)
	newData for unsigned bool data types More...
void	newData (const QVector< double > &)
	newData for vector of double data types More...
void	newData (const QVector< int > &vi)
	newData for vector of int data types More...
void	newData (const QVector< bool > &bv)
	newData for vector of boolean More...
void	newData (const QStringList &slv)
	newData for string list More...
void	newData (const CuData &data)
	newData signal passing the whole data bundle More...
Protected Slots inherited from Qumbiaizer
virtual void	configure (const CuData &data)
	Configures the attached object, if any. More...
virtual void	updateValue (const CuData &v, bool read=true, const char *customMethod=NULL, QuValueFilter::State updateState=QuValueFilter::Update)
	updates the listener with the new value More...
Protected Attributes inherited from Qumbiaizer
QumbiaizerPrivate *	quizer_ptr

Detailed Description

Manage readings of various type of objects in a different thread.

QuWatcher is a special class that reads a tango variable using QTangoCore. Any QObject or base types (int, short, double, unsigned int, QString, bool) can be attached to this reader and obtain the new data when the attribute or command is refreshed. If a QObject is attached, then a slot must be provided together with the object so that the slot is invoked with a compatible input parameter in order to update the object itself on new data arrival. The data type that must be managed by the QuWatcher is guessed from the slot provided or detected according to one of the other attach methods available.

Single shot readings

Call setSingleShot with a true parameter to make the QuWatcher perform a only single reading.

warning: singleShot property is read inside the refresh method. Reimplementing the refresh() method in your own subclass means taking care of correctly managing the singleShot property.

See also

QTangoizer::setSingleShot

QTangoizer::singleShot

In single shot mode, newData, attributeAutoConfigured, connectionOk and connectionFailed signals are still emitted.

Example

QProgressBar *progressBar = new QProgressBar(this);
QuWatcher *progressBarWatcher = new QuWatcher(this);
progressBarWatcher->attach(progressBar, SLOT(setValue(int)));
// configure maximum and minimum values when available
progressBarWatcher->setAutoConfSlot(QuWatcher::Min, SLOT(setMinimum(int)));
progressBarWatcher->setAutoConfSlot(QuWatcher::Max, SLOT(setMaximum(int)));

progressBarWatcher->setSource("$1/short_scalar_ro");

That's it! The QProgressBar will be updated via the setValue(int) slot whenever new data is available and even its maximum and minumum values are updated when available through the QTango auto configuration process.

Example 2

int intVar; // want to monitor a simple integer value
QuWatcher *intWatcher = new QuWatcher(this);
intWatcher->attach(&intVar); // attach the integer variable to intWatcher
intWatcher->setSource("$1/long_scalar"); // read!

See the qtango/test/watcher example inside the library distribution for an example

\chapter Supported data types \list

• int
• short
• unsigned int
• double
• Tango::DevState
• QString
• bool
• QStringList
• QVector<double>
• QVector<int>
• QVector<bool>

\endlist \endchapter

Auto destruction

It is possible to setAutoDestroy to true to have your reader destroyed after the first reading. Note that the object will be destroyed even if the execution fails.
A convenience class, introduced in cumbia 1.2.4 is Qu1TWatcher, which is a single shot, auto destroying QuWatcher

Single shot readings

You can call setSingleShot to let your reader perform only one reading from the source.

See also

Qu1TWatcher

\chapter New data signals A variety of type specific signals are emitted after the value is successfully extracted from a reading. A newData signal containing the full CuData bundle is emitted as well.

Please note that only data["value"] is extracted, converted to the given type and sent through the newData signal. Control system engines supporting set point (or write) values will provide data["w_value"] when available. It is handled by QuWatcher for simple auto configuration tasks as aforementioned but the extracted value is not propagated through newData.

Constructor & Destructor Documentation

QuWatcher() [1/2]

QuWatcher::QuWatcher	(	QObject *	parent,
		Cumbia *	cumbia,
		const CuControlsReaderFactoryI &	r_fac
	)

Constructs a reader with parent parent.

See also

Qumbiaizer class documentation.

QuWatcher() [2/2]

QuWatcher::QuWatcher	(	QObject *	parent,
		CumbiaPool *	cumbia_pool,
		const CuControlsFactoryPool &	fpool
	)

~QuWatcher()

QuWatcher::~QuWatcher ( )

virtual

Member Function Documentation

getContext()

CuContext * QuWatcher::getContext ( ) const

virtual

Return a reference to the CuContext in use.

Returns

a pointer to the CuContext used by the subclass.

Implements CuContextI.

onUpdate()

void QuWatcher::onUpdate

(

const CuData &

data

)

QuWatcher implementation of the onUpdate method.

Parameters

data	the data received from the reader

If data contains the property key, Qumbiaizer::configure is called and the configured signal is whence emitted. If data contains the value key and is not a property type, Qumbiaizer::updateValue is called. From there, type specific signals are emitted and the configure slots are invoked.

The following signals are always emitted at the end of this method:

• newData(const CuData&)
• readOk(bool ok)
• refreshMessage(const QString& msg)

Both the generic configure and newData signals carry the full data coming from the engine.

See also

Qumbiaizer::updateValue

References Qumbiaizer::configure(), Qumbiaizer::data(), Qumbiaizer::newData(), Qumbiaizer::readOk(), Qumbiaizer::refreshMessage(), Qumbiaizer::singleShot(), unsetSource(), and Qumbiaizer::updateValue().

setSource

void QuWatcher::setSource ( const QString &  s )

slot

Connect the reader to the specified source.

If a reader with a different source is configured, it is deleted. If options have been set with QuContext::setOptions, they are used to set up the reader as desired.

See also

QuContext::setOptions

source

References CuControlsReaderA::setSource(), and Qumbiaizer::singleShot().

source()

QString QuWatcher::source

(

)

const

returns the source of the watcher

Returns

the source of the reader, if configured. An empty string otherwise.

See also

setSource

unsetSource

unsetSource

void QuWatcher::unsetSource ( )

slot

Stop the watcher.

Disposes the reader.

See also

setSource

References Qumbiaizer::autoDestroy().

Referenced by onUpdate().

Property Documentation

source

QString QuWatcher::source

readwrite

---

The documentation for this class was generated from the following files:

• quwatcher.h
• quwatcher.cpp
